Swimming Pool Chemical Probes

Chemical probes are excellent devices for pool water monitoring and treatment. When they are used together with an electronic swimming pool controller, they can help you prevent over or under feeding of your pool disinfectant chemical. These devices enhance your pool water treatment process through precision analysis.

Together these devices react very quickly responding to any changes in your swimming pool or spa water.

Working together, they will determine when and if more chemicals should be feed into your swimming pool on not.

When used together, a chemical sensing probe and a automatic pool controller can:

  • Turn a chemical feed pump on or off.
  • Open or close a pool circulation valve.
  • Automatically switch a swimming pool circulation to its backwash circle.
  • Operate a chlorinating feed system.
  • Automatically turn on your pool lights or swimming pool pump.

Controlling these systems are accomplished by a professionally installed chemical feed control system. The first step in automating your pool chemical feed system, is to measure the chemical factor or parameter that is to be controlled. This we accomplished using an extremely sensitive chemical probe.

Operation Of Chemical Probes

Chemical sensors or probes operate by sending signals back to the automatic electronic controller, which operates your chemical feeders. Through this process, your swimming pool sanitizing chemicals are introduced into your pool or spa water system.

To ensure that your automated system works to its full capacity, make sure that you only use the chemical sensing probes that were designed to work with that make and model of controller. Failure to do so, can result in false readings which can caused too much or too much little pool disinfectant being feed into your swimming pool or spa water.

Resulting in poor swimming pool water disinfection which is bad for swimmers.

Chemical Probes Used In Swimming Pool Monitoring

In the swimming pool and spa industry, there are many distinct types of chemical probes, which are used to measure and provide input and output signals for complete swimming pool-controlled monitoring. Some of these chemical probes include...

  • pH probes - Which monitors the pH levels in your pool or spa water.
  • ORP probes - this probe is sometimes referred to as redox. ORP stands for Oxidation Reduction Potential.
  • Amperometic probes.

Looking at each of these chemical-sensing probes more closely, will reveal why it's so important to use the correct chemical probes designed to work with the automatic pool controllers.

Chemical pH probes - As I mentioned earlier, the pH probe is used to measure the pH level in your swimming pool or spa water. The pH measurement is the activity of hydrogen ions surrounding a thin-walled glass bulb at the tip of the probe. A pH sensing probe produces a small electrical voltage, usually about 0.06 volt per pH unit.

This voltage is measured and then displayed as pH units on your meter or automatic pool controller. Most pH probes consist of a body, an electrode, and a cable that connects it to the controller. As you can see from the photo below.

Now if your pH sensing probe is installed more than twenty feet from your automatic chemical controller, you must use a pre-amplifier which will ensure that the proper signal is sent to your pool monitor.

How Does A pH Probe Work?

The readings of a pH probe can be affected by one of two possible ways. Your pool water's pH and the output signal from the probe's electrode, will both be changed with temperature differences. These two effects together or separately can cause errors in the control of your pH measurements and in your calibrations. The pH probe has a chemical sensing element, that has a thin membrane which allows H+ ions to pass through.

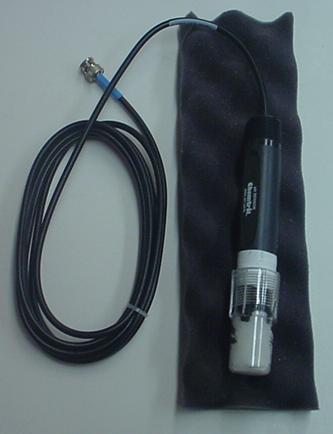

pH chemical probes

The electrode of the probe is also filled with a neutral solution or an equal amount of H+ or OH- ions.

Whenever the pH probe is immersed in an acidic solution, H+ ions pass through the membrane.

This causes a positive potential on the chemical sensing electrode to be developed.

This potential difference between the sensing electrode and the reference point is measured with a pH meter.

It is then displayed on your automatic pool controller as a pH read out.

Now if your pH chemical probes are immersed in an alkaline solution, then a higher concentration of H+ ions will exist within the probe.

The concentration of ions inside the pH probe is more than that found outside the probe itself. This reading causes the H+ ions within the probe to pass through its membrane; thus, leaving an excess of OH- ions within the probe. This causes a negative potential to be sensed by your pH meter. Again, this will be displayed on your pool automatic controller as a pH readout.

ORP Chemical Probes (Oxidation Reduction Potential) - A simple ORP monitoring control system consists of two chemical probes. One of these as I mentioned earlier, is your pH sensing probe. The other is your ORP probe which measures your pool chemical disinfectant levels.

These probes together, controls your chemical feed pumps. An ORP probe which is sometimes referred to as a Redox, indicates the oxidizing/reducing capabilities of your spa or swimming pool water.

An ORP chemical sensor measures the electron activity of your pool or spa water. A reducing agent (in case you did not know) is a substance that can donate an electron. On the other side, an oxidizing agent is one that can accept an electron.

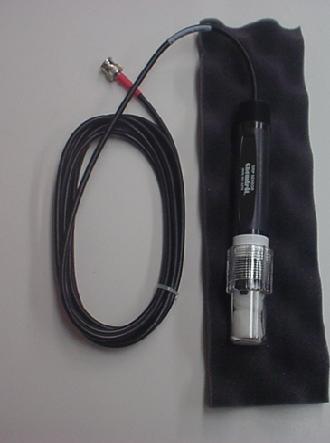

ORP chemical probes

Something we need to remember though - that is, there can be no oxidation without simultaneous reduction.

Because ORP chemical probes measure the activity of electrons in water, the probes must be both chemically inert and a conductor of electrons.

Construction Of ORP probes

ORP chemical probes or sensors are very sensitive; therefore a lot of care goes into the construction of these sensors.

ORP probes are usually constructed using platinum materials.

However, in applications where the reducing agents or solutions are extraordinarily strong, gold is often the material of choice during construction.

ORP probes only measure the ratio of oxidized to reduced forms of all chemicals in your swimming pool. Calibration of your ORP probes should be carried out using a known standard solution. The truth of the matter is that this is the only way the ORP reading will be of any use to you.

Amperometric probe - Amperometric probes are chemical probes that are used to detect the change in the sanitizer residual levels in swimming pools. It accomplishes this by measuring the amount of current that flows between the electrodes found within the probe.

Amperometric chemical probes respond more quickly than most other probe sensors.

They have a more linear response to changes than ORP probes to the chlorine level in pool water.

The Application Of Amperometric Probes

The construction of an amperometric chemical sensing probe consists of a membrane that protects the sensing surface of the probe itself. This type of construction reduces the frequent fouling up of the probe during its operation. Currently, amperometric chemical probes are much more expensive than the more commonly used ORP probes.

These types of chemical sensors are new to the North American pool and spa industry. Amperometric probes and controllers are used widely in the treatment of drinking water and control in swimming pool care in Europe. These chemical sensing probes are also being used in the automated treatment of residential spas.

The Location Of Chemical Probes

The location of your pool chemical sensing probes is very important. You can not achieve accurate control of your pool chemical dosing unless your chemical probes provide you with accurate readings. One key factor in achieving an accurate probe reading is the source of the water to be measured.

Installation of the chamber that will house the probes, depends greatly on the source water as well. Special considerations such as the ones listed below, play a key role in the installation of your probe's chamber. These considerations are as follows:

  • The source water to the probe's chamber should be from a pipe line downstream from your filter. If you use unfiltered water, it will cause your flow cell to become clogged or plugged. This will cause your probes to become dirty much quicker. Whenever this happens, your chemical probes will provide you with inaccurate readings or measurements.
  • The return water line from the flow cell should not be plumbed directly into the suction side of your swimming pool filtration pump. The fact of the matter is that the vacuum that is created in the system, may damage your chemical probes.
  • The source water to your probe's chamber should be installed upstream from your swimming pool heater. Truth be told...the changes in your pool water temperature can affect the accuracy of your pool water measurement.
  • The source water to your probe sensing chamber should be upstream from your pool chemical injection point and into your pool's circulation line.
  • The chamber for your chemical probes should not be installed in direct sunlight.

Cleaning Your Chemical Probes

Cleaning your chemical probes or automatic sensors is vital because it ensures that you get continued accurate readings and it ensures longer life of your probes. This cleaning process is very important especially if you are using Cyanuric acid regularly as a chlorine stabilizer. Your ORP probe is one of the most commonly used probes for measuring disinfectant levels in swimming pool care.

Sadly, ORP probes foul or get dirty very quickly. This causes the ORP read out to change, even though the true ORP of the pool water does not change. Because chemical sensing probes get dirty, manufacturers of these swimming pool monitoring devices provide special cleaning instructions in their manuals.

When Do Chemical Probes Require Cleaning?

Signs that a probe is dirty and needs cleaning are as follows:

  • A slow response to the changes in the level of sanitizer in your swimming pool or spa water.
  • A low or inaccurate readout on your automatic swimming pool controller.

Your chemical probes get dirty when materials found in your water accumulate on the surface of the probes in a thin film. This thin film is often invisible to the human eye; thus, given you the false sense that there is nothing wrong with your probes' sensing capabilities.

The frequency at which your ORP probes foul up varies from swimming pool to swimming pool. The fouling up or false reading depends on what is present in your pool water and on the chemical probes themselves.

False Readings From Your Chemical Probes

Many components found in water can or may contribute to the contamination of your pool chemical sensing probes, these include materials such as...

  • Minerals.
  • Organics.
  • Perspiration.
  • Suntan lotions.
  • Body oils.
  • Urine.
  • Cyanuric acid.

In swimming pool care, the fouling up of a chemical sensing probe can occur within days or in some cases weeks. As I mentioned earlier, manufacturers have included detailed step-by-step instructions in the maintenance and proper cleaning procedures of their chemical probes.

If you are a pool operator/manager, it is good practice to properly train your staff on these cleaning instructions.

Also it is good practice to the have instructions posted near the controller unit for quick reference.

The cleaning procedures usually looks similar to this:

  • Turn off the power to the automatic pool controller.
  • Remove the probes separately from the flow cell or chamber.
  • Gently scrub the tip of each probe with a clean soft brush, such as a toothbrush.
  • Use any mild detergent such as a hand soap or toothpaste.
  • Re-install the probes and restore the power supply to the automatic swimming pool controller.

In some cases, the fouling up of an ORP probe is so rapid that the use of an automatic probe cleaner is more desirable than cleaning them manually. Some manufacturers make their own automatic ORP probe cleaners.

These automatic probe cleaners are designed to help resolve the fouling up or inaccurate reading of the probes. This helps in providing you with prolong use of both your pH and ORP chemical probes.
